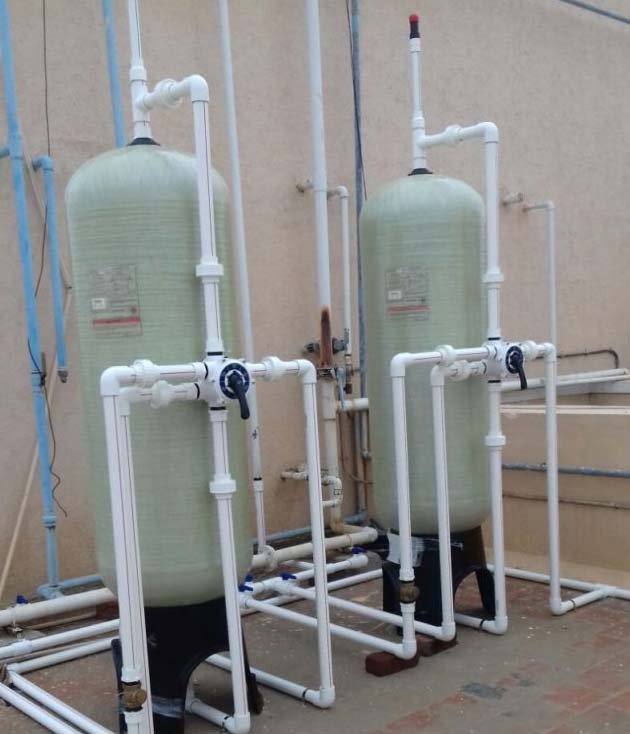

100 KLD Iron Removal Plant

100 kld iron removal plant
100 kld iron removal plant
Application

Applications of 100 KLD Iron removal plant

  • Apartments, villas.
  • Hospitals
  • Hotels
  • Schools, and colleges.
  • Restaurants, Resorts.
  • Factories, Industries
  • All places like wherever they have iron problem in their water.

We are Manufacturer of 100 KLD Iron Removal Plant in Chennai

Specification

Specification of 100 KLD Iron removal plant

S.NO Specifications Details of Equipment Quantity
1Dual Media  Filter (DMF):
Supply, Erection and Commissioning of Pressure MGF with fallowing Specifications:
Vessel : 610 mm Dia  X 1830Height
Design Pressure : 10.0 Kg / Cm²
Working Pressure : 3.0 Kg / Cm²
MOC – FRP
Service Flow Rate : 6000LPH – 8000 LPH
Filter Media :   IR OT1,  Silex
Valves : Multi-Port Valves: 40NB (Manual)
Accessories : Frontal pipes, Values, Pressure Gauge fitted to give indication pressure drop through filter.
Hitech / Pentair Or Equivalent1 Set.
2Multi Graded Filter (MGF):
Supply, Erection and Commissioning of Pressure MGF with following Specifications:
Vessel :610 mm Dia  X 1830Height
Design Pressure : 10.0 Kg / Cm²
Working Pressure : 3.0 Kg / Cm²
MOC – FRP
Service Flow Rate : 6000LPH – 8000 LPH
Filter Media : IR OT2 Silex , MnO2, &Activated Carbon IV value 950+
Valves : Multi-Port Valves: 40NB (Manual)
Accessories : Frontal pipes, Values, Pressure Gauge fitted to give indication pressure drop through filter.
Hitech / Pentair Or Equivalent1 Set
3Pipe Works
Interconnecting Pipes, NRV & Fittings, pump fittings,
Pipes for Aeration and complete Accessories
UPVC 1 no
Client scope
4Aeration Water Tank
50000 Liters  RCC Tank/ Plastic Tank or your exsting sump
Sintex or Equivalent 1 no
Client scope
5Filter Feed pump
Motor –2 hp, Type- Mono-bloc –pump – 3 phase, Head – 36 Metres, Capacity – 20000LPH
Kirloskar/ Suguna
Equivalent
1 no
Client scope
Description

There are several methods to treat the iron water problem like Ancient Iron Removal method, Traditional Iron Removal Method but most of that don’t work so efficiently. By keeping this on mind WATERSPARKS formulated a new method of treatment by combining both Traditional and Technology. In this process, we won’t disturb your existing line rather than that we will by-pass your existing line. These are the Steps done in our method of the Iron Removal Filtration System.

100 KLD Iron Removal Plant :

Step 1: The water which is coming out from bore will be diverted to another tank which is called Aeration tank and the water will not flow directly it will be sprayed through the pipes which are already made holes in it and fixed in the Aeration tank

Step 2: After filling the Aeration tank need to give some time to make the hard particles like sediment impurities and rusted irons to settle down.

Step 3: In Aeration tank the waterline will be taken half-inch above from the ground level whereas another line will be there at the bottom for drainage purpose. And to suck the water from this Aeration tank we use 5 Hp monobloc pump.

Step 4: Then the water will be passed to Dual Media Filter and Multi Graded Filter then the outlet line from the filter will be joined to the existing line which goes to the overhead tank and from there as usual, water gets distributed to whole house.

Step 5: And only maintenance you have to do is Backwash this operation flushes out the Iron Sediments and wastes from the filters and which is also very easy to operate, as our valves are made up of inbuilt Ceramic Disc.

Highlights
  1. Easy installation without disturbing your existing pipelines just by-passing to your overhead tank.
  2. Makes your water crystal clear by removing minutus Iron particles.
  3. The valves are German made which is inbuilt with Ceramic Disc inside.
  4. The filtration cylinder vessels are made up of Pentair FRP which is first quality brand to make FRP vessels.
  5. The Filter media which is used for Iron removal doesn’t require a change at all it will last for more than 10 to 15 years.
  6. All together WATERSPARKS Iron Removal Filtration System is an “ONE TIME SOLUTION”.
