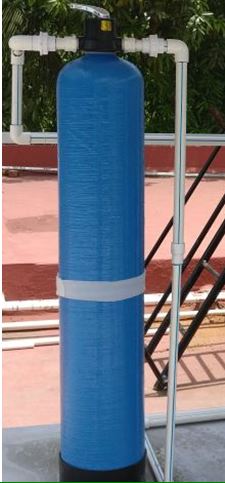

2000 LPD Overhead Tank Filtration

2000-LPD-Overhead-Tank-Filtration
2000 LPD Overhead Tank Filtration

Application

Applications of 2000 LPD Overhead Tank Filtration :

  • Hospitals
  • Hotels
  • houses
  • Schools
  • Restaurants
Specification

Specifications of 2000 LPD Overhead tank filtration :

S.NO Specifications Details of EquipmentQuantity
1Dual Media Filter (DMF):
Supply, Erection and Commissioning of Pressure DMF with following Specifications:
Vessel : 255mm Dia  X 1370 Height
Design Pressure : 10.0 Kg / Cm²
Working Pressure : 3.0 Kg / Cm²
Filter Media :  IR OT1, Silex.
Valves : Multi-Port Valves: 25NB (Manual)
Accessories : Frontal pipes, Values, Pressure Gauge fitted to give indication pressure drop through filter
Pentair/
Clean Water
1 Set.
2Filter Feed pump
Capacity -1000 LPH,  Motor– ½ hp, Type- Mono-bloc
Kirloskar/ Suguna/DAB
Equivalent
1 no
Client scope
3 Pipe Works
Interconnecting Pipes & Fittings for lines. Water aeration system specially designed pipes.
CPVC / UPVC
Client scope
Highlights
  1. Easy installation ( 2000 LPD overhead tank filtration ) without disturbing your existing pipelines just by-passing to your overhead tank.
  2. Makes your water crystal clear by removing minutus Iron particles.
  3. The valves are German made which is inbuilt with Ceramic Disc inside.
  4. The filtration cylinder vessels are made up of Pentair FRP which is first quality brand to make FRP vessels
  5. The Filter media which is used for Iron removal doesn’t require a change at all it will last for more than 10 to 15 years
  6. All together WATERSPARKS Iron Removal Filtration System is an “ONE TIME SOLUTION”.
Description

The 2000 LPD Overhead Tank Filtration system generally filters all the sediment impurities like sand, silts, dust, chlorine etc. nowadays even in metro water or panchayat water which we get directly from reserved rain water also comes in a contaminated state so using that contaminated water also cause harmful disease like flu, viral infections, etc so by passing this water through the 2000 LPD Overhead Tank Filter  gets rid of the contaminations in the water and passes the pure water to the Overhead tank.
