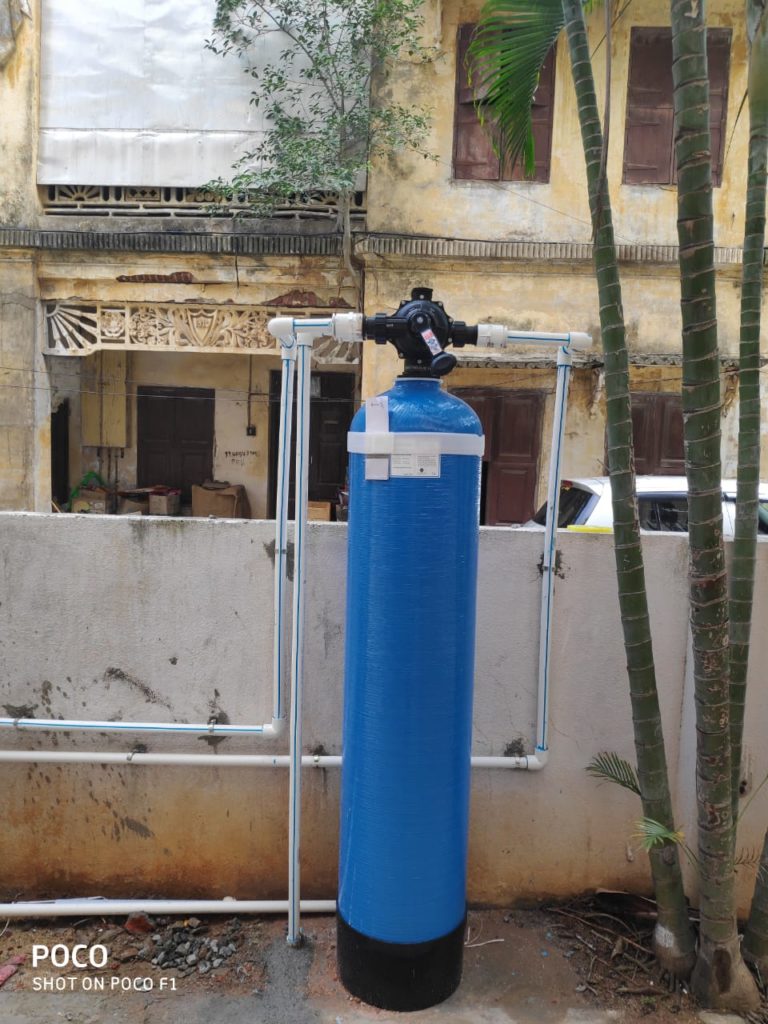

1000 LPD Overhead Tank Filtration
Application

Applications of 1000 LPD Overhead Tank Filtration

  • House.
  • Hospitals
  • Hotels
  • Schools
  • Restaurants.
  • All places like wherever they have iron problem in their water.

We manufacturing 1000 LPD Overhead Tank Filtration in chennai and selling best price of overhead tank filter.

Specification

Specifications of 1000 LPD Overhead Tank Filtration :

S.NO Specifications Details of Equipment Quantity
1Dual Media Filter (DMF):
Supply, Erection and Commissioning of Pressure DMF with following Specifications: Vessel :255mm Dia  X 1370 Height
Design Pressure : 10.0 Kg / Cm²
Working Pressure : 3.0 Kg / Cm²
Filter Media:  IR OT1, Silex.
Valves : Multi-Port Valves: 25NB (Manual)
Accessories : Frontal pipes, Values, Pressure Gauge fitted to give indication pressure drop through filter
Pentair/
Clean Water
1 Set.
2 Filter Feed pump
Capacity -700LPH,  Motor– ½ hp, Type- Mono-bloc
Kirloskar/ Suguna/DAB Equivalent 1 no
Client scope
3 Pipe Works
Interconnecting Pipes & Fittings for lines. Water aeration system specially designed pipes.
CPVC / UPVC
Client scope
Highlights
  1. 1000 LPD Overhead Tank Filtration easily installation without disturbing your existing pipelines just by-passing to your overhead tank.
  2. Makes your water crystal clear by removing minutus Iron particles.
  3. The valves are German made which is inbuilt with Ceramic Disc inside.
  4. The filtration cylinder vessels are made up of Pentair FRP which is first quality brand to make FRP vessels
  5. The Filter media which is used for Iron removal doesn’t require a change at all it will last for more than 10 to 15 years
  6. All together WATERSPARKS Iron Removal Filtration System is an “ONE TIME SOLUTION”.
Description

1000 LPD Overhead Tank Filtration :

The 1000 LPD Overhead Tank Filtration system generally filters all the sediment impurities like sand, silts, dust, chlorine etc. nowadays even in metro water or panchayat water which we get directly from reserved rain water also comes in a contaminated state so using that contaminated water also cause harmful disease like flu, viral infections, etc so by passing this water through the Overhead Tank Filter  gets rid of the contaminations in the water and passes the pure water to the Overhead tank filter.
